Description
Belongs to the Essentials range, a set of luminaires of different types and styles that share a common aesthetic. Designed for ambient urban lighting applications, adapting to different urban spaces. Ideal for installation on supports between 4 and 6 metres. Optical design optimised for a perfect glare control and cut-off suitable for pedestrians without emission to the upper hemisphere.
MAIN FEATURES:
High efficiency. Up to 142 lm/W net
Essentials range. From 20W to 120W
Finless passive dissipation
Tool-less opening
18 light distribution curves
Zhaga Standard (Book 15)
Ready 4IoT. Ready for any intelligent lighting control solution
APPLICATIONS:
Historical Centres
Residential Streets (Zones 30)
Pedestrian Zones
Commercial and Tourist Streets
Squares
Green Areas; Parks and Gardens
See more… Other products of the family
Design - By Ramón Úbeda & Otto Canada.

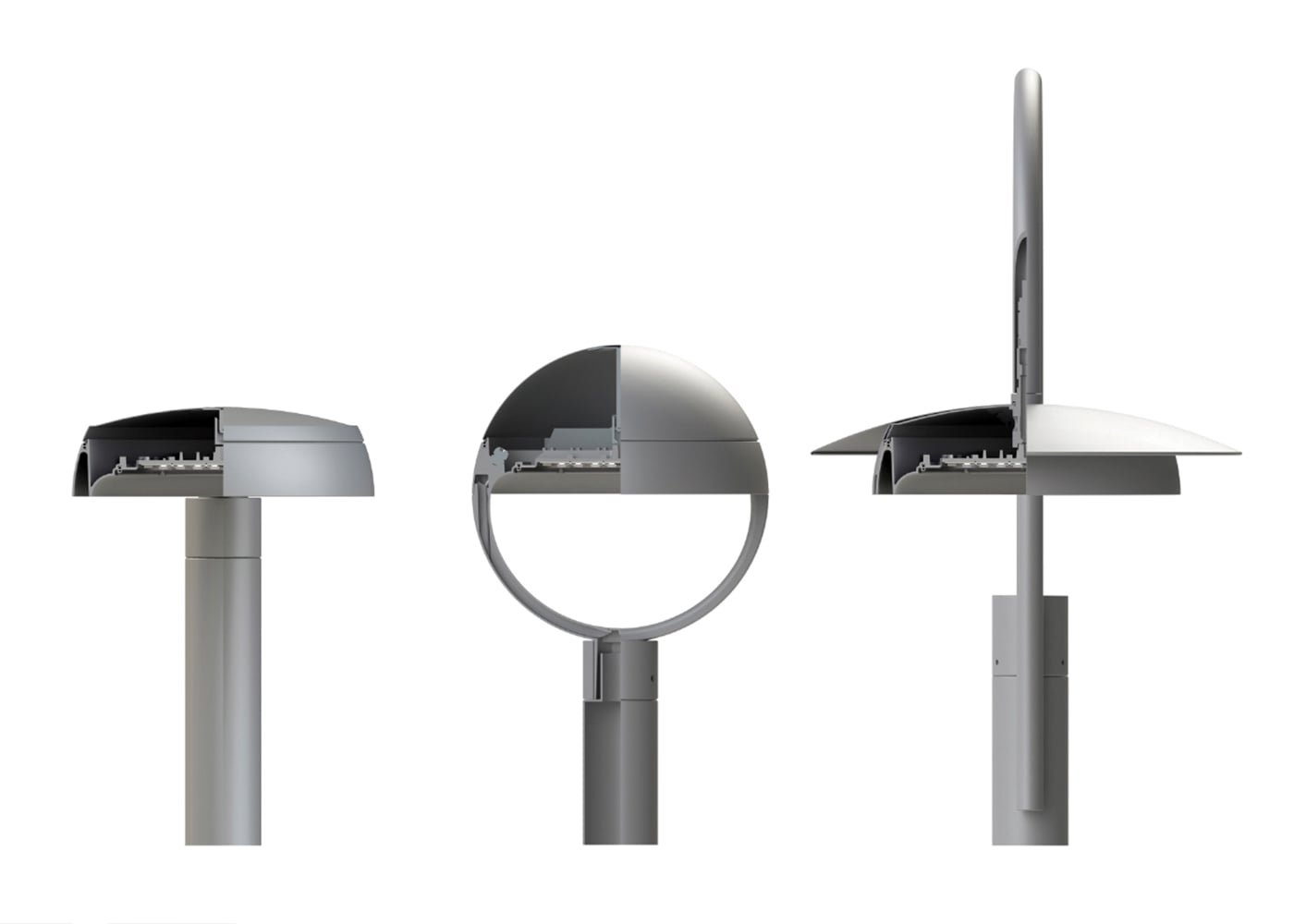

Installation in Top by Double Bracket.

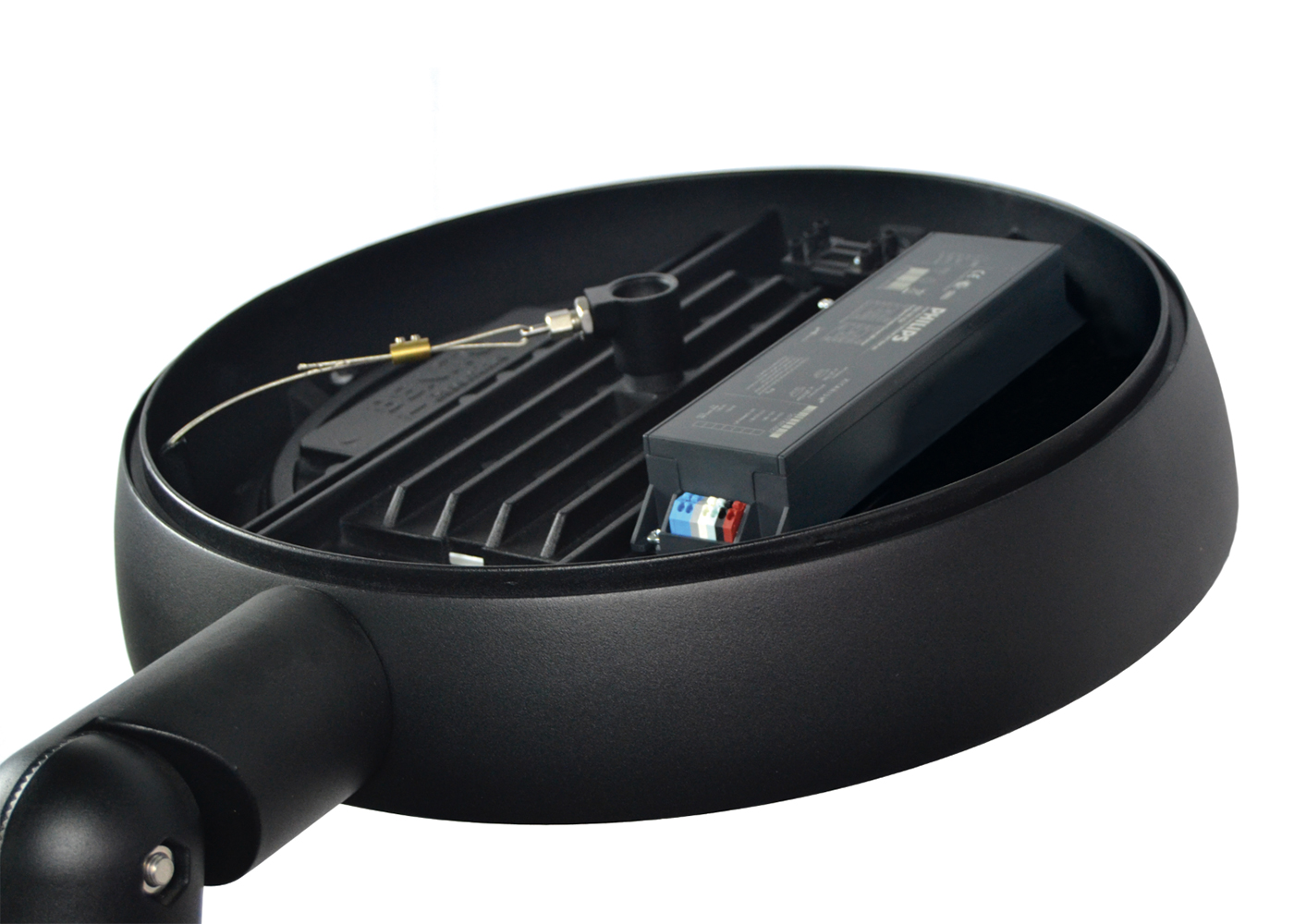

Opening without tools.
| Real luminous flux (T) =85ºC) | Initial luminous flux (T) =25ºC) |
| REF. | Nº LEDs | Power W | I Driver mA | Flux lm | Efficacy lm/W | Flux lm | Efficacy lm/W |
| DECO Globus | ILGL | 16 | 20 | 375 | 2842 | 142 | 3240 | 162 |
| 16 | 30 | 563 | 4242 | 141 | 4836 | 161 |
| 16 | 40 | 750 | 5642 | 141 | 6432 | 161 |
| 32 | 50 | 470 | 7050 | 142 | 8055 | 162 |
| 32 | 60 | 563 | 8460 | 141 | 9644 | 161 |
| 32 | 80 | 750 | 11280 | 141 | 12859 | 161 |

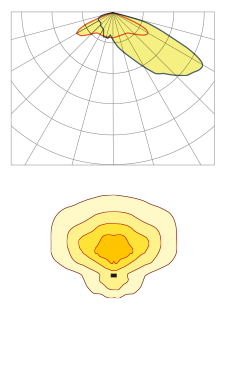

Asymmetric Extensive Frontal (A1)

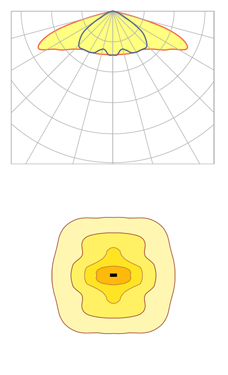

Symmetric Extensive (SE)

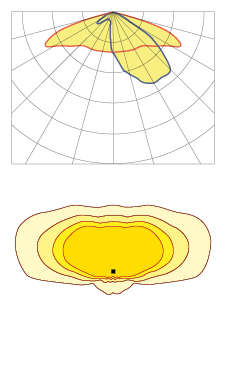

Asymmetric Extensive (AE)

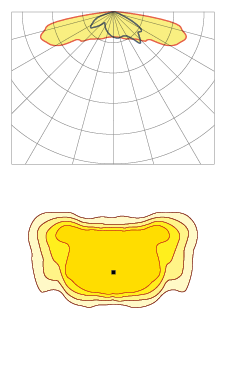

Asymmetric Extensive Wide (A3)
*Show 4 recommended lighting distributions. Refer to the 18 typologies.
