Gas

APG32

Description

Retrofit module with 32 LEDs. High-efficiency sink made of anodised extruded aluminium. Power from 20W to 120W without affecting the LEDs lifetime. Essential for the technological update of the discharge luminaire. Adapts to any luminaire if combined with a mounting plate.

MAIN FEATURES:

High efficiency. Up to 145 lm/W real
2 different sizes. From 20W to 120W
18 different light distributions
Zhaga standard (Book 15)
4mm tempered glass with silicone sealing gasket to achieve IP66

APPLICATIONS:

Sports Facilities; Sports Halls, Sports Courts, Tennis, Padel

Industrial Warehouses

Petrol Stations

Dimensions

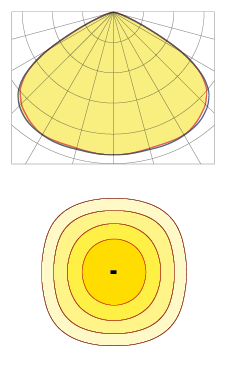

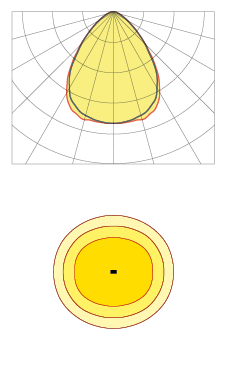

Photometries
Certificates
Technical specifications
Downloads

SPECIFICATION PACKAGE (PDF)
Data Sheet APG32

					Real luminous flux (T) =85ºC)		Initial luminous flux (T) =25ºC)
	REF.	Nº LEDs	Power W	I Driver mA	Flux lm	Efficacy lm/W	Flux lm	Efficacy lm/W
GAS 32	APG32	32	80	750	11360	142	12950	162
		32	100	938	14100	141	16074	161
		32	120	1125	16920	141	19289	161
