Success stories that inspire
Installation of Tomsk light points in one of the most touristic villages of La Palma, famous for its almond trees in bloom and multiple examples of traditional architecture.
The sophisticated Tomsk delineator posts, light fixtures and street lamps on a promenade in Alicante. Delineator posts for the cycle lane. Spotlights for the street.
BENITO's Tomsk luminaires in the rsidential area of Balitrà in Palamós.
The lighting renovation of the Puente de la Cadena Park, in Molins de Rei (Barcelona), includes Tomsk light points and beacons in Marson color, complemented with Milan projectors.
Lighting of the new development project in the area at the mouth of the Gorgos river in Jávea.
Explore our catalogs and discover all the available options
×
Light point Tomsk F
ACTMF+ALTM
X Product added successfully to your WISHLIST. If you want to see all the products click here.
Description
Pole made of laminated steel tube with a 200mm x 100 mm rectangular profile. Height from 4m to 7m. Can include one or two brackets (same or different height). High resistance and durability. Refined and modern style ideal for any urban environment. Includes a BENITO-NOVATILU LEDs module with ligh distributions from 20W to 120W to cover all applications.
MAIN FEATURES:
- High efficacy. Up to 145 lm/W net
- 2 different sizes. From 20W to 120W
- 18 light distribution curves
- Zhaga Standard (Book 15)
- Tempered 4mm glass with sealing joint to obtain an IP66 rating
APPLICATIONS:
- Residential areas
- Squares and green spaces
- Cycle lanes and ≤30km/h areas
See more… Success stories that inspire
Other products of the family
![]()
| Ref | H (Altura) | Sección | Pernos | Plantilla |
| ACTMF4 | 4m | 200x100mm | M22x700 | 300x300mm |
| ACTMF6 | 6m | 200x100mm | M22x700 | 300x300mm |
| ACTMF8 | 8m | 200x100mm | M22x700 | 300x300mm |

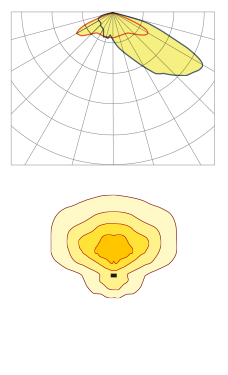

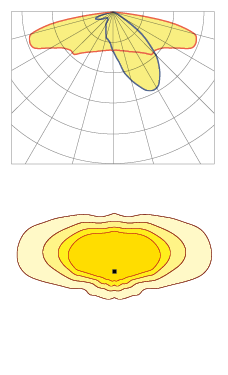

Asymmetric Extensive Frontal (A1)
Asymmetric Extensive Narrow (A2)
Asymmetric (A4)
Asymmetric Extensive (AE)
*Show 4 recommended lighting distributions. Refer to the 18 typologies.
