Luminaire Deco Suspendida
ILDS
X Product added successfully to your WISHLIST. If you want to see all the products click here.
Description
Deco Suspendida belongs to the Essentials family, a set of luminaires of different typologies and styles that share total aesthetic coherence between them. Elegant and contemporary design. Designed for ambient urban lighting applications, adapting to different outdoor spaces. Ideal for installation on supports between 4 and 8 metres. Optical design optimised for perfect glare control, cut-off suitable for pedestrians and no emission towards the upper hemisphere.
MAIN FEATURES:
High efficiency. Up to 142 lm/W real
Essentials Family. From 20W to 120W
Passive dissipation without fins
18 different light distributions
Zhaga Standard (Book 15)
Ready 4IoT. Ready for connectivity
APPLICATIONS:
Historic Centers
Residentials Streets (Zones 30)
Pedestrian Zones
Commercial and Tourist Streets
Squares
Green Areas; Parks and Gardens
See more… Other products of the family
Design - By Ramón Úbeda & Otto Canada.

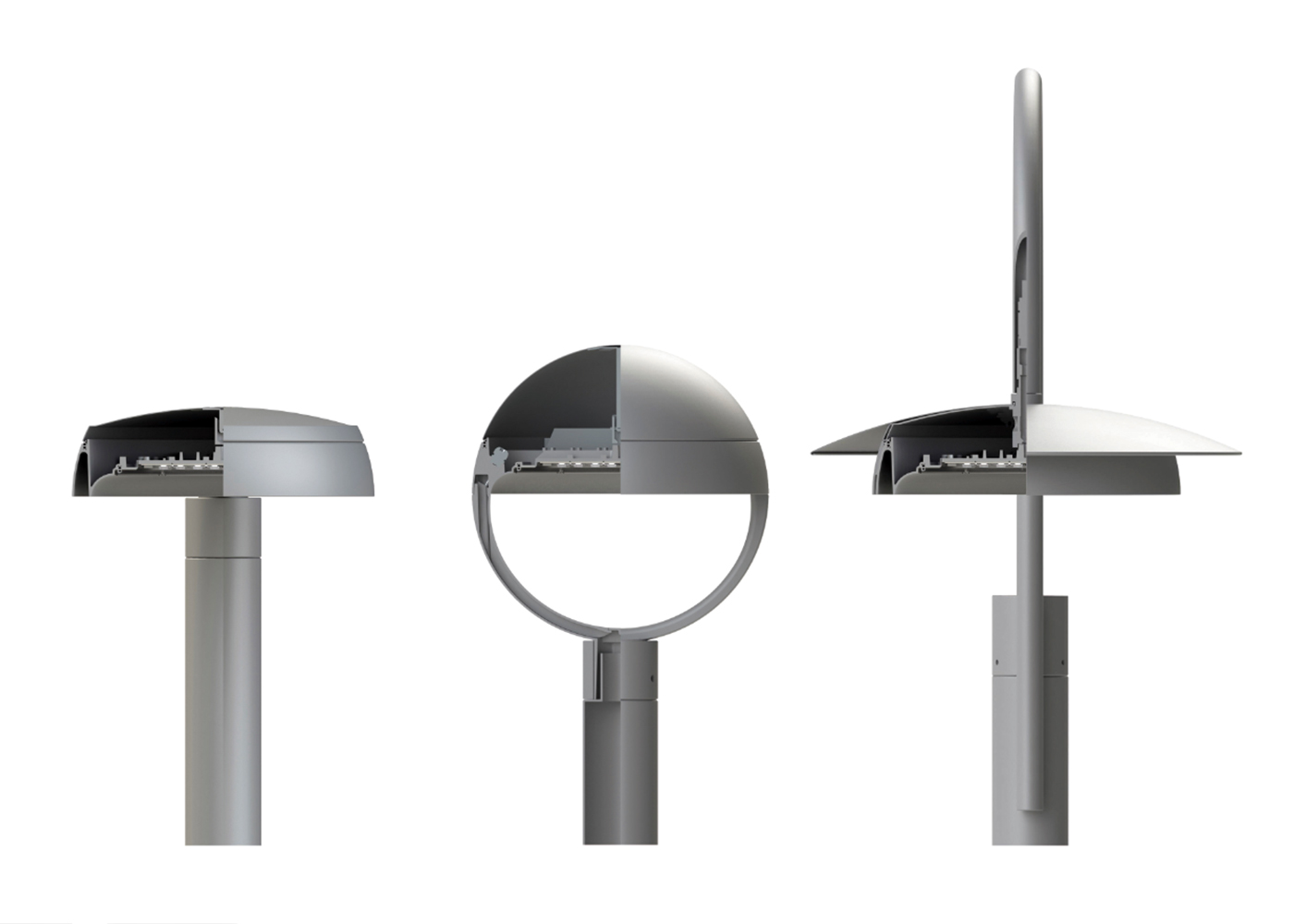

Suspended installation.
Double cavity.
| Real luminous flux (T) =85ºC) | Initial luminous flux (T) =25ºC) |
| REF. | Nº LEDs | Power W | I Driver mA | Flux lm | Efficacy lm/W | Flux lm | Efficacy lm/W |
| DECO SUSPENDIDA | ILDS | 16 | 20 | 375 | 2842 | 142 | 3240 | 162 |
| 16 | 30 | 563 | 4242 | 141 | 4836 | 161 |
| 16 | 40 | 750 | 5642 | 141 | 6432 | 161 |
| 32 | 50 | 470 | 7050 | 142 | 8055 | 162 |
| 32 | 60 | 563 | 8460 | 141 | 9644 | 161 |
| 32 | 80 | 750 | 11280 | 141 | 12859 | 161 |
| 48 | 100 | 625 | 14100 | 141 | 16074 | 161 |
| 48 | 120 | 750 | 16920 | 141 | 19289 | 161 |

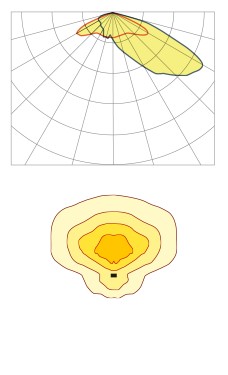

Asymmetric Extensive Frontal (A1)

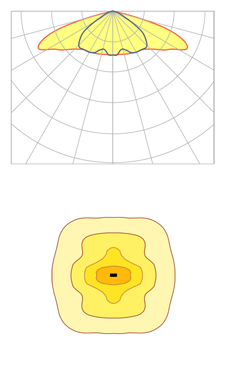

Symmetric Extensive (SE)

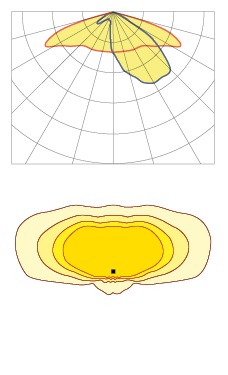

Asymmetric Extensive (AE)
Asymmetric Extensive Wide (A3)
*Show 4 recommended lighting distributions. Refer to the 18 typologies.
