Description
A complete road luminaire family at the forefront of LED technology to offer excellent lighting performance thanks to its aerodynamic design, which increases the dissipation surface. Comprehensive range available in three sizes with extensive optical and light distributions from 20W up to 240W. Housing composed of two parts that can be disassembled without tools. Ready for any smart lighting control solutions.
MAIN FEATURES:
High efficiency. Up to 145 lm/W real
3 different sizes. From 20W to 240W
Double cavity, Driver and Optical Group
Body removable in 2 pieces without tools
18 different light distributions
Zhaga Standard (Book 15)
Ready 4IoT. Ready for connectivity
APPLICATIONS:
Roads and Highways
Roundabouts
Urban Roads and Streets
Parking
See more… Other products of the family
| Real luminous flux (T) =85ºC) | Initial luminous flux (T) =25ºC) |
| REF. | Nº LEDs | Power W | I Driver mA | Flux lm | Efficacy lm/W | Flux lm | Efficacy lm/W |
| FUSION L | ALFUL150 | 64 | 120 | 563 | 16920 | 141 | 19289 | 161 |
| 64 | 150 | 703 | 21000 | 140 | 23940 | 160 |
| ALFUL220 | 96 | 200 | 625 | 28400 | 142 | 32376 | 162 |
| 96 | 220 | 688 | 31020 | 141 | 35363 | 161 |
| ALFUL240 | 96 | 240 | 750 | 33600 | 140 | 38304 | 160 |

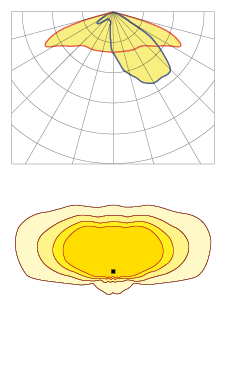

Asymmetric Extensive (AE)

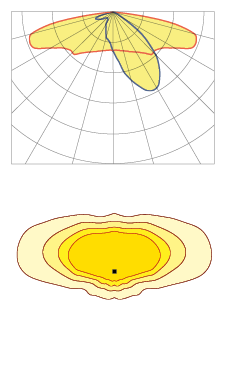

Asymmetric Extensive Narrow (A2)

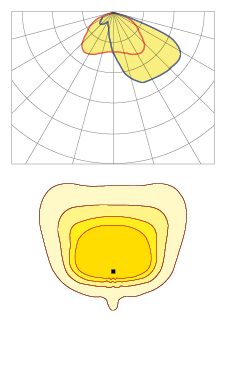

Asymmetric (A4)

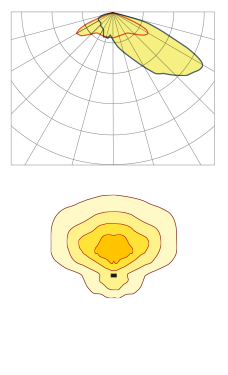

Asymmetric Extensive Frontal (A1)
*Show 4 recommended lighting distributions. Refer to the 18 typologies.
