Description
Telescopic Pole with a square-section base and rounded corners, made of galvanized steel S-235 JR with a standard micro-textured black finish. Cylindrical shaft with Integrated side panel made of hot-dip galvanized steel, with single and double options at the same and different heights.
Total Pole height: 5 to 11 meters, with termination in Lateral Ø60 mm. Design with a distinctive aesthetic and unique presence, ideal for promenades and avenues, offering a Light Point that adds personality to the municipality.
Optional:
– Shaft and in polished stainless steel.
- Anti-urine treatment at the base.
See more… Other products of the family
| Ref. | H | H1 | H2 | H3 | Ø | C | D | A | B |  |  |  |  |  |
| ICNT50 | 5000 | 4500 | 1210 | 4500 | 60 | 650 | - | 300 | 200 | M18x500 | x | x | - | - |
| ICNT70 | 7000 | 6500 | 2500 | 4500 | 60 | 1050 | 600 | 400 | 300 | M18x500 | x | x | x | - |
| 7000 | - | - | - | - | - | - | - | - | M18x500 | - | - | - | x |
| ICNT90 | 9000 | 8500 | 2500 | 4500 | 60 | 1050 | 600 | 400 | 300 | M18x500 | x | x | x | - |
| 9000 | - | - | - | - | - | - | - | - | M18x500 | - | - | - | x |
| ICNT110 | 11000 | 10500 | 2500 | 4500 | 60 | 1050 | 600 | 400 | 300 | M22x700 | x | x | x | - |
| 11000 | - | - | - | - | - | - | - | - | M22x700 | - | - | - | x |
|

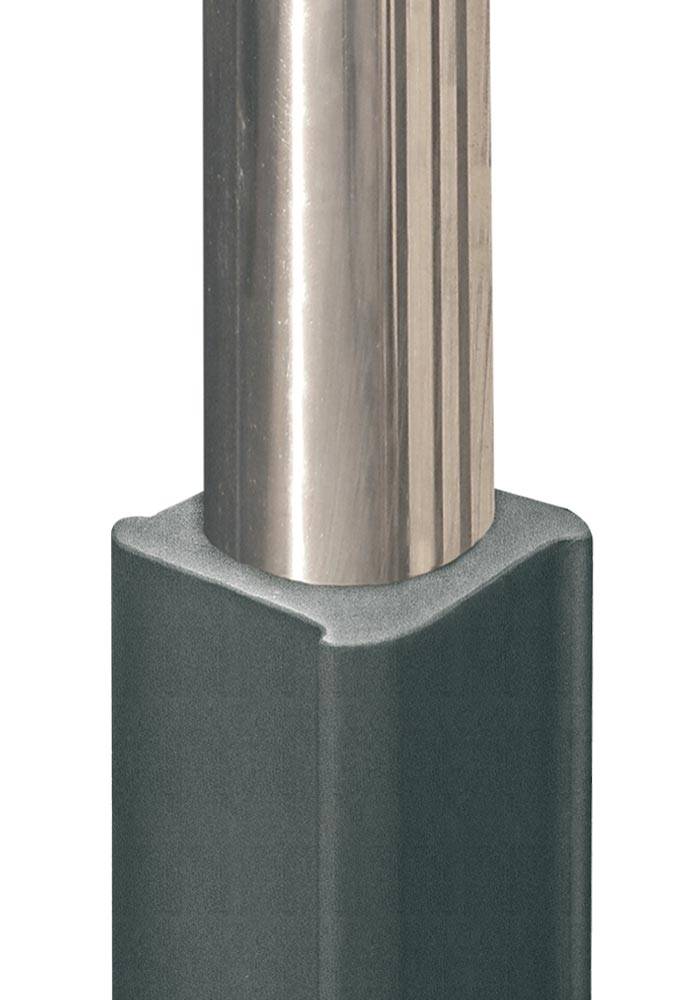

Shaft in polished stainless steel

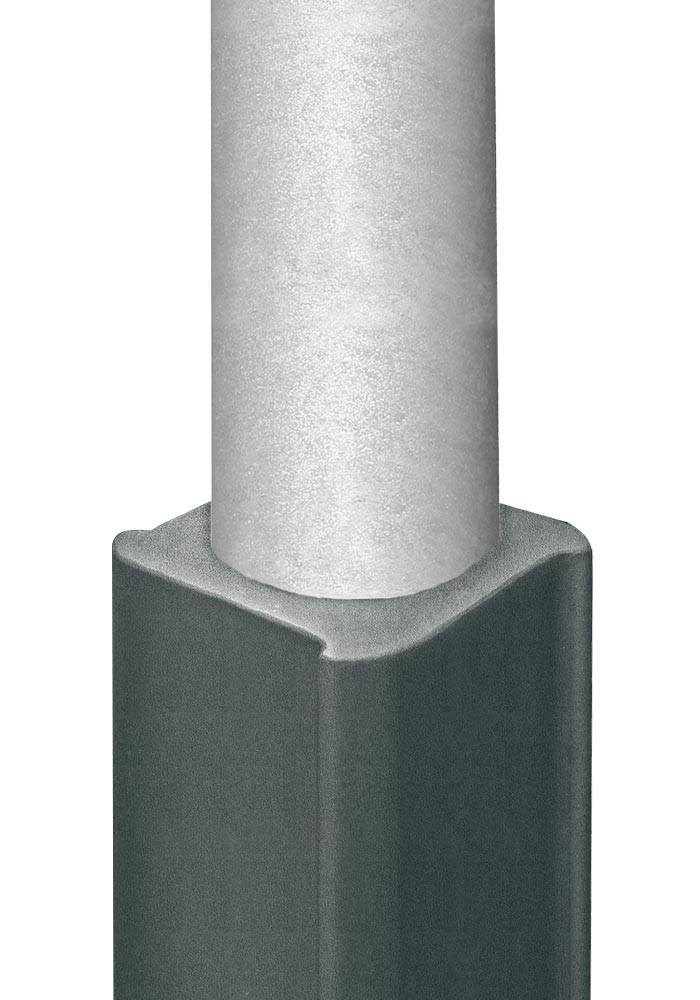

Shaft in galvanized steel with a grey RAL 9006 finish
| Real luminous flux (T) =85ºC) | Initial luminous flux (T) =25ºC) |
| REF. | Nº LEDs | Power W | I Driver mA | Flux lm | Efficacy lm/W | Flux lm | Efficacy lm/W |
