Urban-Rail 3

JAM03

Description

Structure, Laminated Wood: Scandinavian laminated pinewood with autoclave (class IV) treatment. Finished with 2 layers of Lasur paint. - In case this type of wood is subjected to variable weather conditions, laminated pinewood can present some tiny cracks on the surface that do not reduce its durability at all. As regards with Resin and knots, please note that these are part of its natural appearance.

Paneles, ECOPLAY: HDPE of 10-12-15-19mm thickness produced with recycled material. High-density polyethylene characterized by its resistance to chemical abrasives and unaffected by corrosion as it is a polymer. Due to its light, elastic nature, it offers high resistance to impact, making it very difficult to break.

Platforms, Phenol: Birch plywood overlaid with a phenol lm on both sides. The top side has a rough wire mesh to ensure the anti-slip surface. The wire mesh surface has high wear resistance and anti-slip properties, surface is weather- and water-proof, resists to commonly used chemicals.

Metallic parts: Stainless steel AISI-304, hot-dip galvanized steel and aluminium.

Fixings: Electro galvanized and stainless steel quality 8.8 DIN267, AISI-304.

  • For a very severe use of the equipment should increase inspection / maintenance.
  • Don’t use the product before the installation/maintenance is ready.
  • Please check the maintenance instructions.

The biggest part (mm): 4400x90x90 / Maximum weight of parts (kg): 44

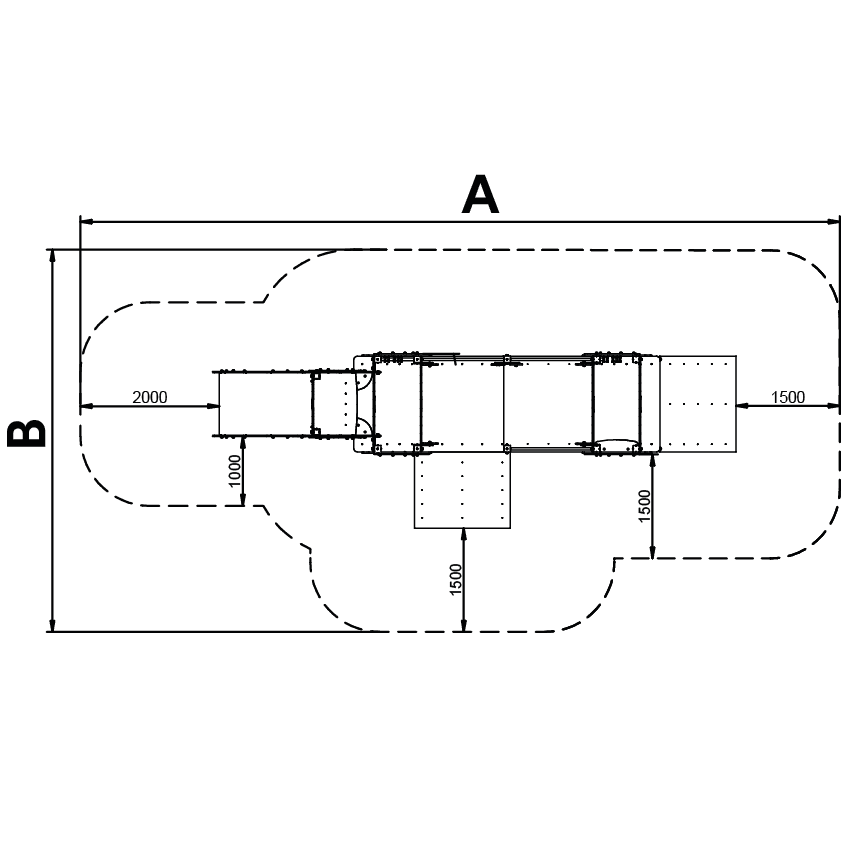

IMPACT ZONE: Required security area. Ground coverings according to the norm EN1176-1:2017 are recommended.
Spare parts/replacements availability: 10 years.
