Irrigation Mouth BR40R -73523-COPIA

BR40N

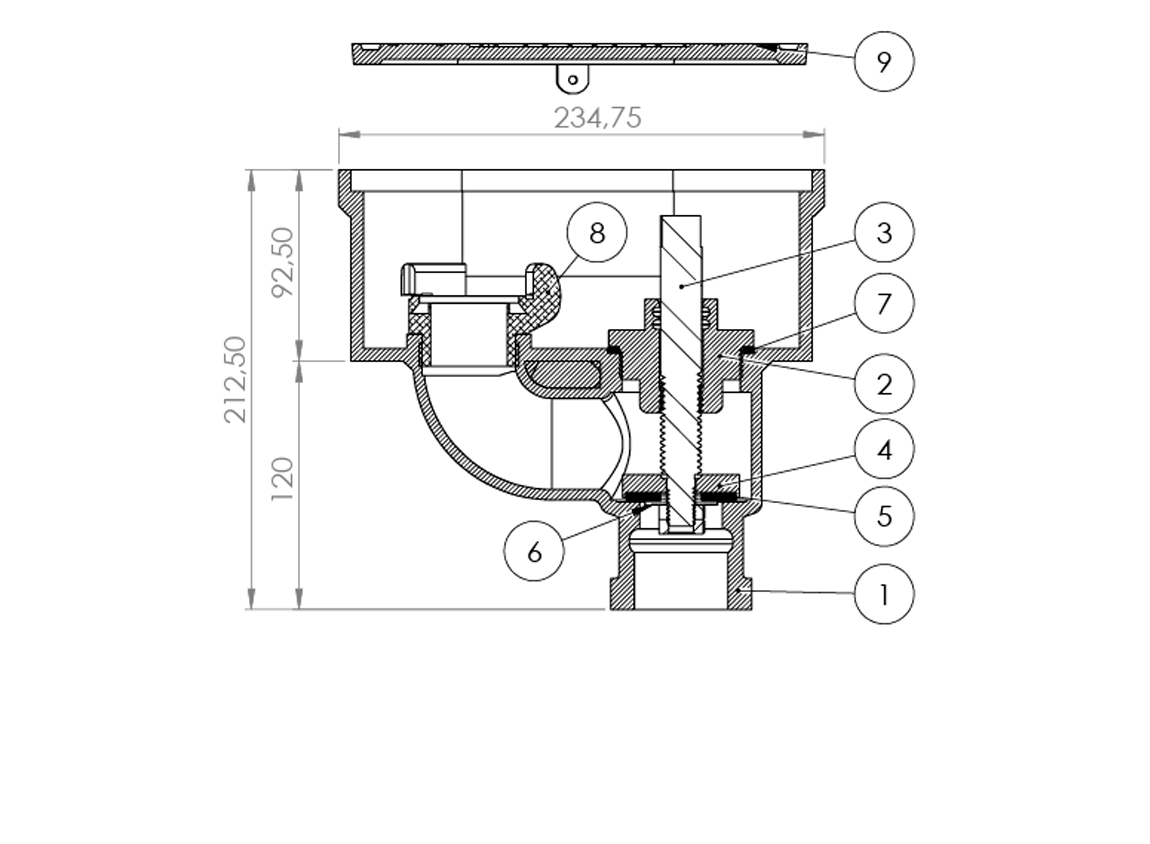

Nº	Referencia	Descripción	Cant.
0.04''	REF.10255	Cuerpo H-40 Llobregat ECO	0.04''
0.08''	REF.10257	Cuerpo estopada B. Rec ECO	0.04''
0.12''	REF.10258	Tornillo maniobra	0.04''
0.16''	REF.10259	Soporte goma cierre	0.04''
0.20''	-	Junta válvula ECO	0.04''
0.24''	REF.10261	Arandela válvula ECO	0.04''
0.28''	REF.10264	Junta plana H40	0.04''
0.31''	REF.11086	Racor 45	0.04''
0.35''	REF.10256	Tapa boca riego ECO	0.04''

Description

H-40 irrigation outlet for water supply in irrigation networks and water supply systems. Designed for safe and efficient installation, with robust construction and top access via an access cover.

TECHNICAL CHARACTERISTICS

DN-40 connection
Dimensions (W × D × H) 305 × 305 × 270.5 mm
Base diameter Ø 210 mm
Top diameter Ø 274 mm
Connection height 149 mm
Connection diameter Ø 90 mm
Other diameters Ø 45 / Ø 110 mm
Materials: Steel and rubber components
high strength

Nº	Referencia	Descripción	Cant.
0.04''	REF.10255	Cuerpo H-40 Llobregat ECO	0.04''
0.08''	REF.10257	Cuerpo estopada B. Rec ECO	0.04''
0.12''	REF.10258	Tornillo maniobra	0.04''
0.16''	REF.10259	Soporte goma cierre	0.04''
0.20''	-	Junta válvula ECO	0.04''
0.24''	REF.10261	Arandela válvula ECO	0.04''
0.28''	REF.10264	Junta plana H40	0.04''
0.31''	REF.11086	Racor 45	0.04''
0.35''	REF.10256	Tapa boca riego ECO	0.04''
